Excavators are huge construction machines featuring a boom, dipper (or stick), bucket, and cab positioned on a rotating platform known as the “house.”. Hydraulic fluid, hydraulic cylinders, and hydraulic motors are used to perform all of the movements and functions of a hydraulic excavator. Hydraulic cylinders operate in a fundamentally different way than cable-operated excavators, which employ winches and steel ropes to achieve movements.
Excavators are most commonly used to dig trenches, holes, and foundations, and they have the power to do so considerably more quickly and efficiently than any other piece of heavy equipment on the market. Some of the most common excavators are listed below.

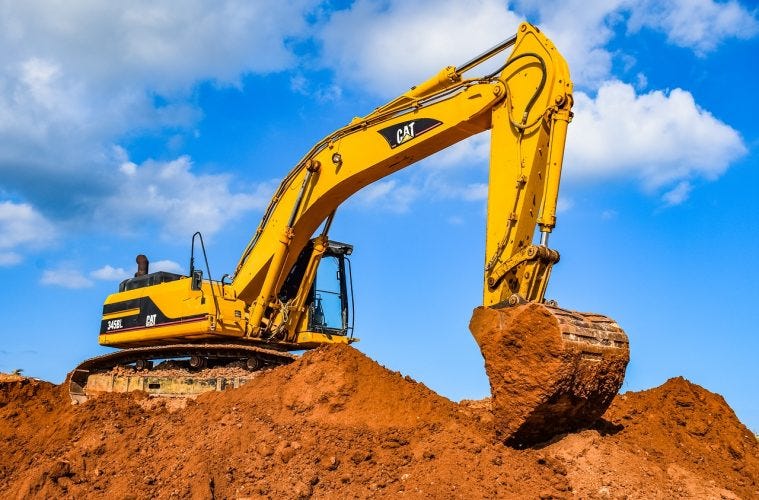

A crawler excavator (sometimes called a crawling digger) is a tracked vehicle that digs, grades, or moves earth and large objects. Its style of propulsion distinguishes it from other tracked vehicles. Wheeled, walking, towed, and rail excavators are among the several types of excavators. These crawlers, which are similar to tracked tanks commonly used by armies, move on rotating wheel systems and can dig, pick, and transport excavated objects as they go. A crawler excavator has a primary crawler chassis, rotor support, central swivel joints, turntables, device weight, panel, cab, and air-conditioners. Crawler excavators are commonly employed in construction projects such as digging trenches, holes, and foundations, as well as material handling, earth movement, demolition, and dredging. Boring, ripping, crushing, cutting, and lifting are all possible with the crawler excavator’s other attachments.

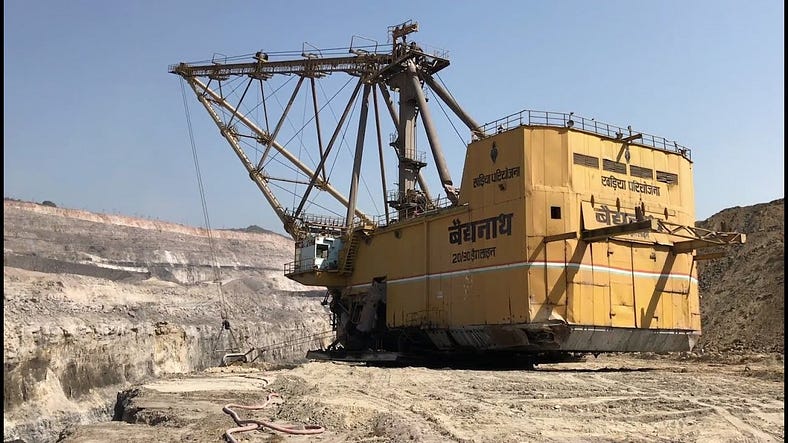

In civil engineering and surface mining, a dragline excavator is a piece of heavy equipment. Draglines are divided into two types: those that are based on ordinary lifting cranes and those that must be developed on-site. Most crawler cranes can be used as a dragline if they include a front-mounted winch drum. These cranes, like other cranes, are designed to be dismantled and transported on flatbed trailers across the road. This smaller crane-type dragline is nearly typically utilized in civil engineering. These are used to build roads, ports, ponds, and canals, as well as pile driving rigs.
A suction excavator uses a broad pipe that can be up to 30 centimeters (1 foot) in diameter to provide significant suction. The airspeed in the suction intake can reach 100 meters per second (220 mph). Its design is similar to that of a vacuum truck (but with a bigger suction line and more powerful suction).
The operator may be able to hold two handles on the suction nozzle. Those handles might allow a collar to be rotated, revealing suction-release apertures (with grilles over) and allowing the suction to be released. This will cause the suction nozzle to drop objects that are too large to fit inside the tube. The tube’s end could be toothed. When used for excavation, this aids in cutting the earth. Some types of material may snag on the teeth when it is used to suck up loose trash and litter. It is possible to loosen the earth that will be pulled out with a compressed-air lance, or a powerful water jet.
A skid steer is a small, engine-driven machine with lift arms that can be used to connect a number of labor-saving gadgets or accessories. Skid-steer vehicles are typically four-wheel vehicles with mechanically locked synchronization on each side and the ability to operate the left-side drive wheels independently of the right-side drive wheels. The wheels usually do not have their own steering gear and are kept in a fixed straight alignment on the machine’s body. Differential steering is used to turn the machine, which involves operating the left and right wheel pairs at separate speeds and turning the machine by skidding or dragging its fixed-orientation wheels across the ground.
By digging a hole from the inside, a skid-steer can occasionally be utilized instead of a huge excavator. The skid loader starts by digging a ramp to the desired excavation’s edge. The ramp is then used to transport material out of the hole. As the excavation deepens, the skid loader reshapes the ramp, making it steeper and longer. Other tasks could include hauling raw materials around a construction site or assisting with the rough grading process.

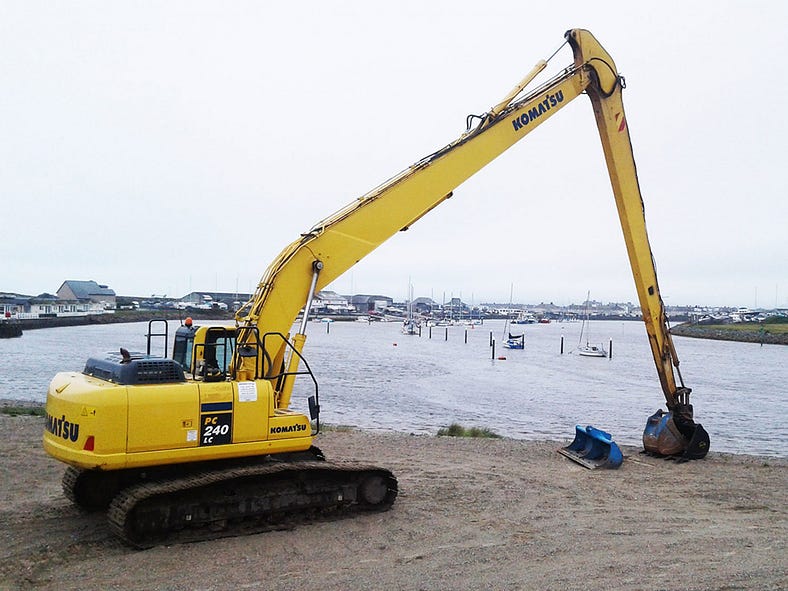

Long reach machines are not ideal for the high side twisting pressures that demolition attachments can exert, and many demolition machines are unstable at a big radius — which is why they are frequently aided with electrical cutoff devices that limit the machine’s operational radius. Dredging activities benefit greatly from long-reach machinery. A long-reach excavator has a longer arm and boom section, as the name implies. The design makes it easier to operate in difficult-to-reach areas. The excavator’s extendable arm has a horizontal reach of nearly 100 feet.
These machines, notably the high-reach excavator and ultra-high reach demolition excavators, have improved.
The high-reach excavator is a type of excavator that has a particularly long boom arm and is mostly used for demolition. The high-reach excavator is designed to reach the upper levels of buildings that are being demolished and pull down the structure in a controlled manner, rather than digging ditches. It has largely taken the role of the wrecking ball as the major demolition instrument. Demolition excavators having a reach of several tens of meters are known as ultra-high reach demolition excavators (UHD). As of 2016, ranges of up to 48 meters (157 feet) are operational. There are UHD machines that can reach 67 meters as of 2017.

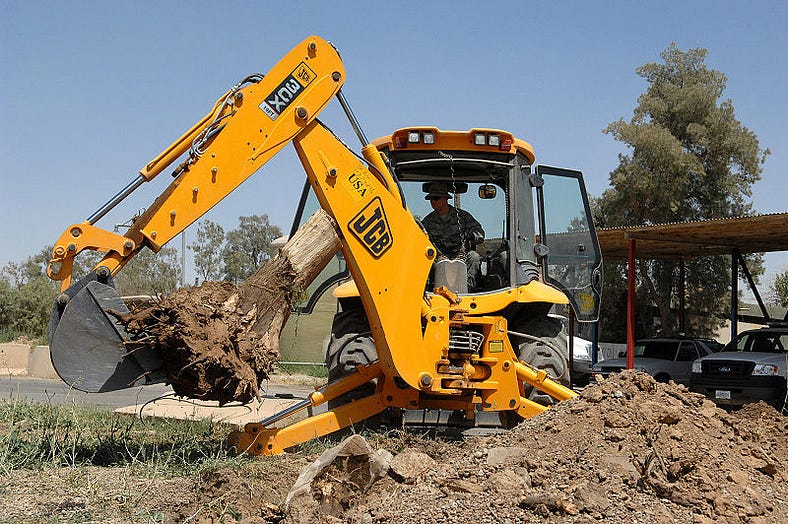

A backhoe is excavating equipment that consists of a regular tractor base with a jointed two-part arm supporting a digging bucket. The front loader attachment on the opposite side of the backhoe is common (in which case the backhoe is formally referred to as a “backhoe loader”), therefore the seat swivels 360 degrees to allow the operator to face whatever side is being used at the time.
The boom is the component of the backhoe arm that connects to the tractor, while the dipper or dipper-stick is the segment that holds the digger bucket. The king-post is the pivot that connects the boom and dipper. Drills, hammers, rippers, rakes, breakers, and other attachments are among the many options for a backhoe. Brooms, plows, and forklifts can all be used in place of the front loader. By hooking the straps of a raised object over the dipper stick, a backhoe can even serve as a crane in some situations.
Back hoe excavators are backhoe loaders that have an excavator boom attached to the back. A big bucket or blade on the front of the backhoe is used to push, level, and transfer earth and other objects. The excavator arm on the back of the backhoe works similarly to a regular excavator, although backhoes only rotate 200 degrees instead of 360 degrees.
A revolving deck with a power plant driving and regulating mechanisms, sometimes a counterweight, and a front attachment, such as a boom or crane, supporting a handle with a digger at the end, make up a power shovel. The entire device is supported by tracks or wheels on a base platform. Power shovels are mostly used for excavation and rubbish removal.
Mechanical cable-operated shovels use clutches, gears, shafts, winch drums, and cable to transfer engine power to the base and attachment. Electric cable-operated shovels have several electric motors powered by a power line or, more rarely, a deck-mounted generator, which replaces the engine and most of the mechanical shovel’s clutches, gears, and shafts. Engine-driven pumps generate pressure for rams and motors in hydraulic shovels. Electrical and hydraulic features may be included in mechanical shovels.
Wheeled excavators are just as powerful as tracked excavators in terms of productivity. Because they are more maneuverable than tracked excavators, wheeled excavators are ideal for roadside work. Models with zero-tail swing can easily operate in a single lane. Off-road, however, they lack the traction of tracked equipment. Uneven terrain might also be an issue for them. They do well in cities. Scrapyard work, road work, material handling, waste handling, and utility installation are just a few examples of applications for wheeled excavators.
A small excavator is a tracked or wheeled vehicle that weighs between 0.7 and 8.5 tonnes when fully loaded. Mini excavators have tracked equipment of the same size as a regular skid-steer, but they serve a fundamentally different purpose. They usually incorporate a standard backfill blade and feature an independent boom swing. A mounted blade and a heavy-duty arm that interfaces with a variety of attachments (though most commonly pictured with a bucket) are among them. The machine must weigh less than 10,000 pounds, or 5 tons, to be considered a tiny excavator, though this requirement is not consistently observed.
An amphibious excavator is a type of excavator that can dredge in shallow water while afloat. Traditional barge-mounted dredgers are less suited to removing salty clay, clearing silted trenches, swampland operations, and shallow water operations than an amphibious excavator. It’s primarily utilized for drenching purposes.
Different types of Excavator Attachments and parts
Excavators are designed in such a way that they can be used for a variety of tasks. The capabilities of hydraulic excavators have grown far beyond bucket excavation. Excavators are now commonly utilized for a variety of purposes other than excavation, thanks to hydraulic-powered attachments such as a breaker, grapple, or auger. Many excavators have a fast coupler for easier attachment mounting, allowing the machine to be more productive on the job site. Excavators are frequently used in conjunction with loaders and bulldozers. A backfill (or dozer) blade is found on most wheeled, compact, and some medium-sized (11 to 18-tonne) excavators. This horizontal bulldozer-style blade is mounted to the undercarriage and is used to level and push discarded material back into a hole.
It’s made up of attachments that help in digging and holding. It also has a rotating platform and wheels, which provide it the mobility it needs to lift and remove debris. Bucket, Augers, Clamp, Coupler, Thumbs, Breaker, Rippers, Hydraulic cylinders, Boom, Cab, Engine, Counterweight, and Track frames are some of the attachments and parts used in excavators.
Application Of different types of excavator
Excavators are used for a wide range of contractor and industrial applications, including mining, road construction, building construction, and demolition. Excavators are useful in a variety of situations.:
- Digging of trenches, holes, foundations
- Material handling
- Brush cutting with a hydraulic saw and mower attachments
- Forestry work
- Forestry mulching
- Construction
- Demolition with hydraulic claw, cutter, and breaker attachments
- General grading/landscaping
- Mining, especially, but not only open-pit mining
- River dredging
- Pile driver
- Driving piles, in conjunction
- Drilling shafts for footings and rock blasting
Conclusion
Excavators have been used in both large and minor construction projects. They’ve been used to excavate, move building material, and remove construction waste on smaller housing projects, in road construction, in naval constructions to place armor and massive rocks, and at larger sites to excavate, move construction material, and remove construction waste, to mention a few. Excavators are divided into numerous categories based on their use, brand, and purpose.
Source; constrofacilitator
