A civil engineer’s employment entails a wide range of responsibilities. They must overcome remote work obstacles in construction, adapt to new construction trends, and manage projects such as the construction of bridges, highways, and rivers in the face of the pandemic. They do this with the help of specialized construction equipment, tools, and instruments. To make their jobs more pleasant and efficient, civil engineers use survey equipment, earth-moving equipment, heavy gear, and other tools.

The structures they build and design would not be safe without the heavy equipment they use. To map out and plot specific places, civil engineers employ geographic information systems and other drafting tools.

Civil construction also employs software to aid in the design of the structures that must be constructed on the site.

This is in addition to the various forms of survey equipment used by civil engineers to measure land and water areas, which may include a sophisticated GPS system specifically developed for these purposes.

We’ll take a deeper look at the heavy machinery utilized in civil construction projects in the following article.

Contents Table of Contents

EXCAVATOR

Excavators are important construction tools that are frequently employed in the civil engineering industry. Their primary function is excavation, but they are also employed for a variety of other tasks such as heavy lifting, demolition, river dredging, tree cutting, and so on. Excavators have a long arm at the end of which is a digging bucket. From the cab of the excavator, the operator drives the heavy equipment around the worksite. The cabin can swivel up to 360 degrees, allowing the operator to work in multiple regions from a single place. Wheeled excavators and tracked excavators are both available.

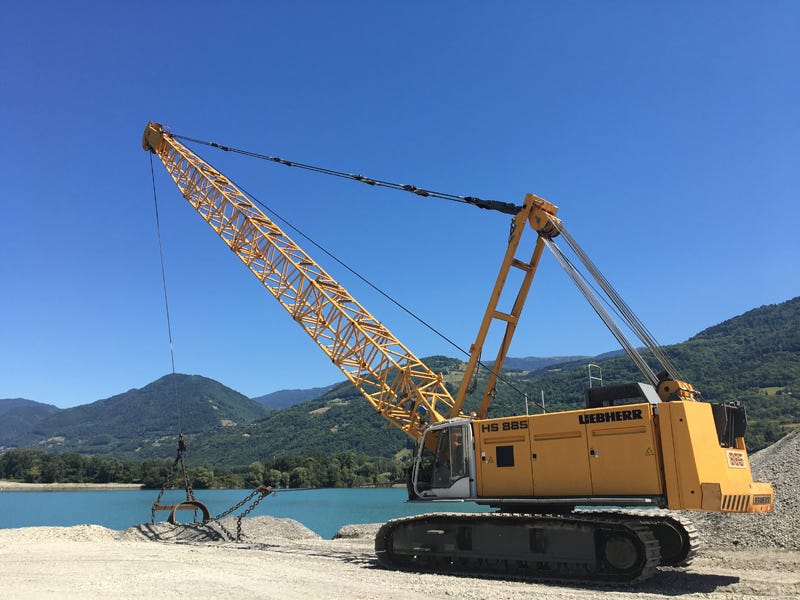

EXCAVATOR WITH A DRAGLINE

Another important piece of heavy equipment in the construction business is the dragline excavator. It’s typically utilized for deeper excavations. A dragline excavator is made up of a long boom and a digging bucket that is suspended by a cable from the top of the boom. Dragline excavators can be used for port building, underwater excavations, and silt removal in bodies of water.

BACKHOE

backhoe is another form of earth-moving equipment that can be employed for a variety of tasks in construction. The name denotes that the digging arrangement is on the equipment’s backside, while the loading bucket is on the front. Backhoe loaders are one of the most versatile construction machines available. They’re used in a variety of ways in the building business. They can be used for a variety of purposes, including:

Earth-moving machinery

Small demolitions on building sites include drilling holes, landscaping, and breaking up concrete or asphalt. digging ditches for commodities loading and unloading Other pieces of equipment, such as an auger, grappler, or hammer, can be used in place of the bucket. In the construction business, the backhoe is a useful piece of heavy machinery. It’s an essential piece of construction equipment because of its varied applications.

BULLDOZER

Bulldozers are a regularly utilized kind of construction equipment. The bulldozer’s wide tracks allow it to travel through challenging terrain regardless of the construction site, and despite the fact that it is heavy equipment, the track helps to disperse the bulldozer’s weight across a wide footprint, allowing it to work on muddy or sandy sites. The bulldozer is a piece of earth-moving machinery. On construction sites, the blade on the front of the bulldozer is used to push or remove soil, sand, and debris.

Hydraulic pistons are used to lower and lift this plate.

Bulldozers can also be equipped with a ripper attachment. The back of the bulldozer has a ripper that is used to break up surface rock, pavement, asphalt, or concrete.

GRADER

Graders, often known as motor graders, are a type of heavy equipment used to build roads. They’re primarily utilized to level the dirt. Between the front and rear wheels of a grader is a horizontal blade that is lowered into the ground while operating.

The operator’s cabin is located on top of the rear axle assembly.

Motor Graders are earth-moving machines that can be used to clear snow and debris from roadways, flatten the soil surface before laying asphalt, and remove the top layer of soil from the ground.

On construction projects, a bulldozer is used for rough grading, while a grader is utilized to finish grades. The grader’s changeable blade allows it to be fine-tuned to attain a high level of precision.

SCRAPER FOR WHEEL TRACTOR

wheel tractor scraper is a kind of earth-moving equipment that scrapes the dirt surface to flatten it. A wheeled tractor vehicle is in the front, and a scraping system with a horizontal front blade, conveyor belt, and dirt collecting hopper is in the back. When the front blade is lowered to the ground and the vehicle is moving, the blade begins to dig above the blade level. Through a conveyor belt, the excavated earth is gathered in a hopper. When the hopper is full, the back section of the hopper is raised off the ground, and the hopper is unloaded at a soil dump yard. When the cut and dump regions are near together, the wheel tractor scraper is particularly effective earth moving machine.

TRENCHER

A trencher is a piece of heavy machinery that is used in construction to dig trenches in the ground. Trenches are required for the installation of pipelines, cables, and drainage. Chain trenchers and wheeled trenchers are two types of trenching machinery. They’re all equipped with a fixed long arm and a digging chain. When the ground is too hard for an excavator to cut through, chain trenchers are used. Chain trenchers with adjustable booms are used to cut bigger trenches. A metal wheel with digging teeth is used on wheeled trenchers. Excavation of hard soil strata is best done with wheeled trenchers. This piece of equipment can dig trenches of varying depths thanks to its wheel. Trenchers are available in both tracked and wheeled vehicle configurations.

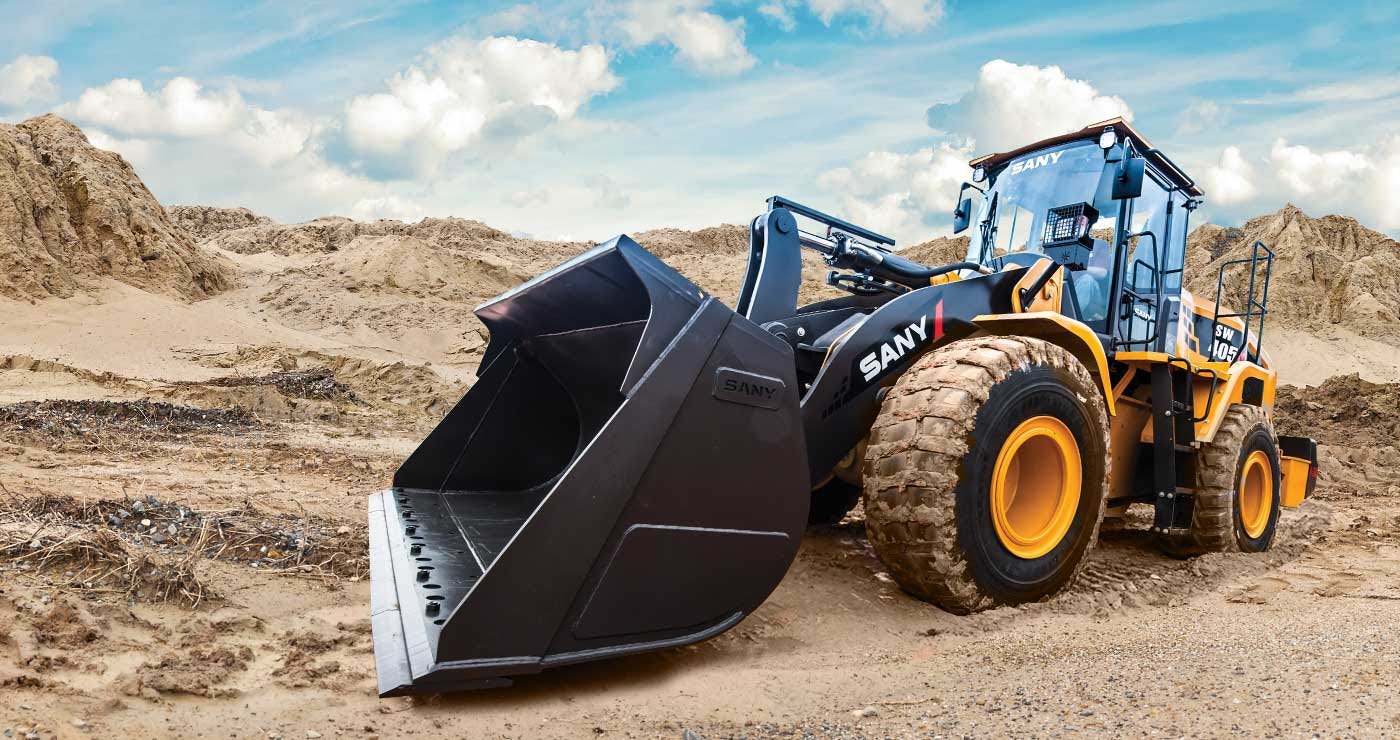

LOADER

Loaders are pieces of construction equipment that load material into dump boxes, dump trucks, and other vehicles. In the construction sector, loaders are used to remove materials from construction sites. Excavated dirt, demolition trash, raw materials, and other commodities may be moved using a loader. A loader has a huge bucket in front of it and a short moving arm. Tracked or wheeled loaders are available. Wheeled loaders are used on construction sites, while tracked or crawling loaders are required in areas where wheeled equipment is unable to access.

CRANE ON THE TOWER

Tower cranes are fixed cranes used in the building of tall structures for hoisting. Concrete blocks, steel trusses, and frames, for example, can be simply hoisted to the desired height. They are made up of a mast, which is the crane’s vertical supporting tower, a jib, which is the crane’s operating arm, a counter jib, which is the opposite arm that carries a counterweight on the crane’s backside, and an operator cabin, which is where the crane is operated.

Source : Stevens
